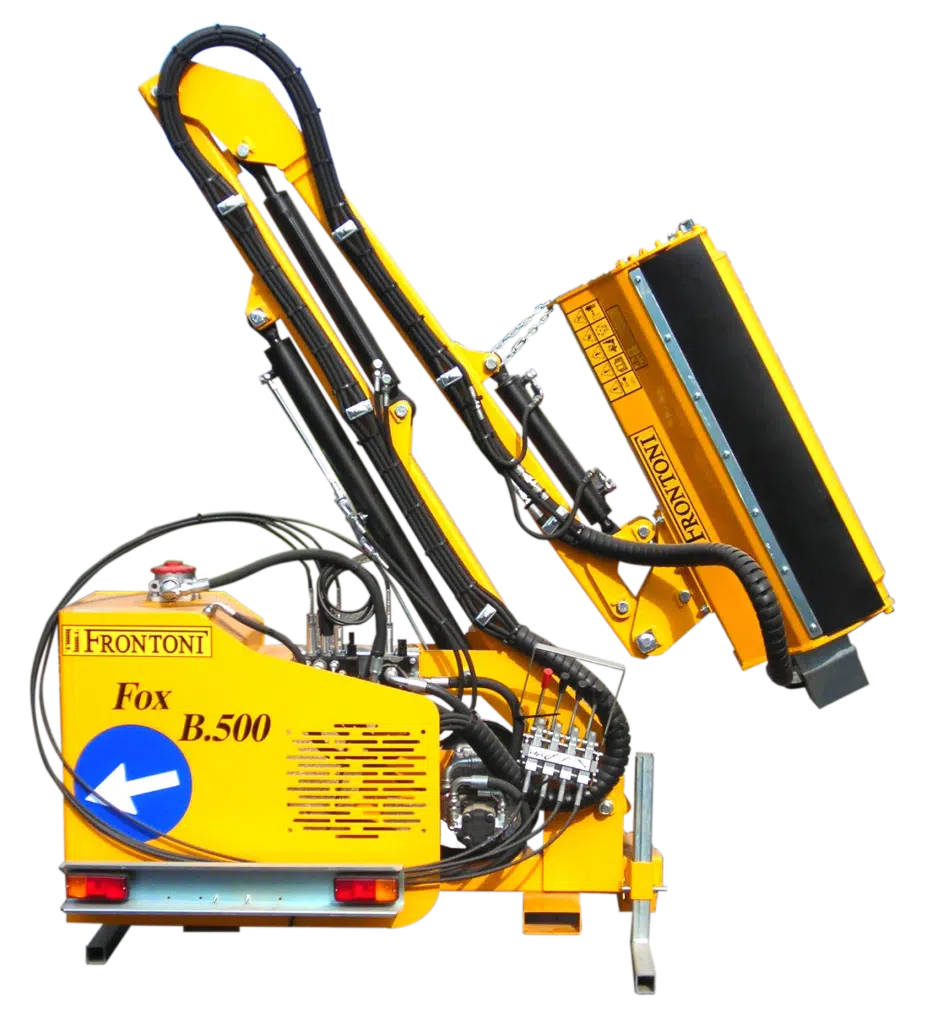

Fox Range
Hydraulic flail-hedger mowers for medium to higher power tractors, suitable for cleaning embankments, ditches and road sides.
The Fox range is extremely broad. Machines are available with reach from 4000mm up to 5900mm and with extensive options of head width, flail types and control systems. Fox has a machine suitable for tractors between 40 and 180hp and with "flat top" capability of up to 3200mm, there is a machine for the "owner driver" and professional contractor alike. Due to the volatile nature of exchange rates, please call 07850931040 to discuss your specification and obtain the best possible price!
Technical Information
| FOX BASIC 400 | FOX BASIC 450 | FOX BASIC 500 | FOX PROFI 400 | FOX PROFI 450 | FOX PROFI 485 | FOX PROFI 500 | FOX PROFI 530 | FOX PROFI 570 |
|---|---|---|---|---|---|---|---|---|
| 660Kg. | 700Kg. | 740Kg. | 780Kg. | 820Kg. | 850Kg. | 860Kg. | 870Kg. | 895Kg. |
| 540Rpm | 540Rpm | 540Rpm | 540Rpm | 540Rpm | 540Rpm | 540Rpm | 540Rpm | 540Rpm |
| 3000 Rpm | 3000 Rpm | 3000 Rpm | 3000 Rpm | 3000 Rpm | 3000 Rpm | 3000 Rpm | 3000 Rpm | 3000 Rpm |
| 45Hp | 45Hp | 45Hp | 45Hp | 45Hp | 45Hp | 45Hp | 45Hp | 45Hp |
| 190Lt. | 190Lt. | 200Lt. | 190Lt. | 190Lt. | 200Lt. | 200Lt. | 200Lt. | 200Lt. |
| kg 2000 | kg 2500 | kg 2800 | kg 2000 | kg 2500 | kg 2800 | kg 2800 | kg 3000 | kg 3200 |
| HP 50/60 | HP 60/70 | HP 60/80 | HP 50/60 | HP 60/70 | HP 60/80 | HP 60/80 | HP 70/90 | HP 80/90 |
| cm 160 | cm 170 | cm 170 | cm 160 | cm 160 | cm 170 | cm 170 | cm 180 | cm 200 |
Further Information
Oil flow rate of the 2 pumps (l/MIN): 100l/min + 31l/min
Ø Rotor tube and thickness: Ø 82,5 X 10 mm
Ø Rear roller and thickness: Ø 121 X 5 mm
Adjustment of telescope with sliding anti-wear block: 2900mm (BASIC)
Cemented bushes in the joints: Standard
Hydraulic safety shock-prevention device on the 2° arm: Standard (PROFI)
Mechanical safety impact-prevention device: Standard (BASIC)
Reversible rotor: Standard
Floating head: Standard
Oil cooler whit thermostat: Optional
Nitrogen accumulators: Optional
Special top link connection: Optional
Belts drive: Optional
