Cat Range

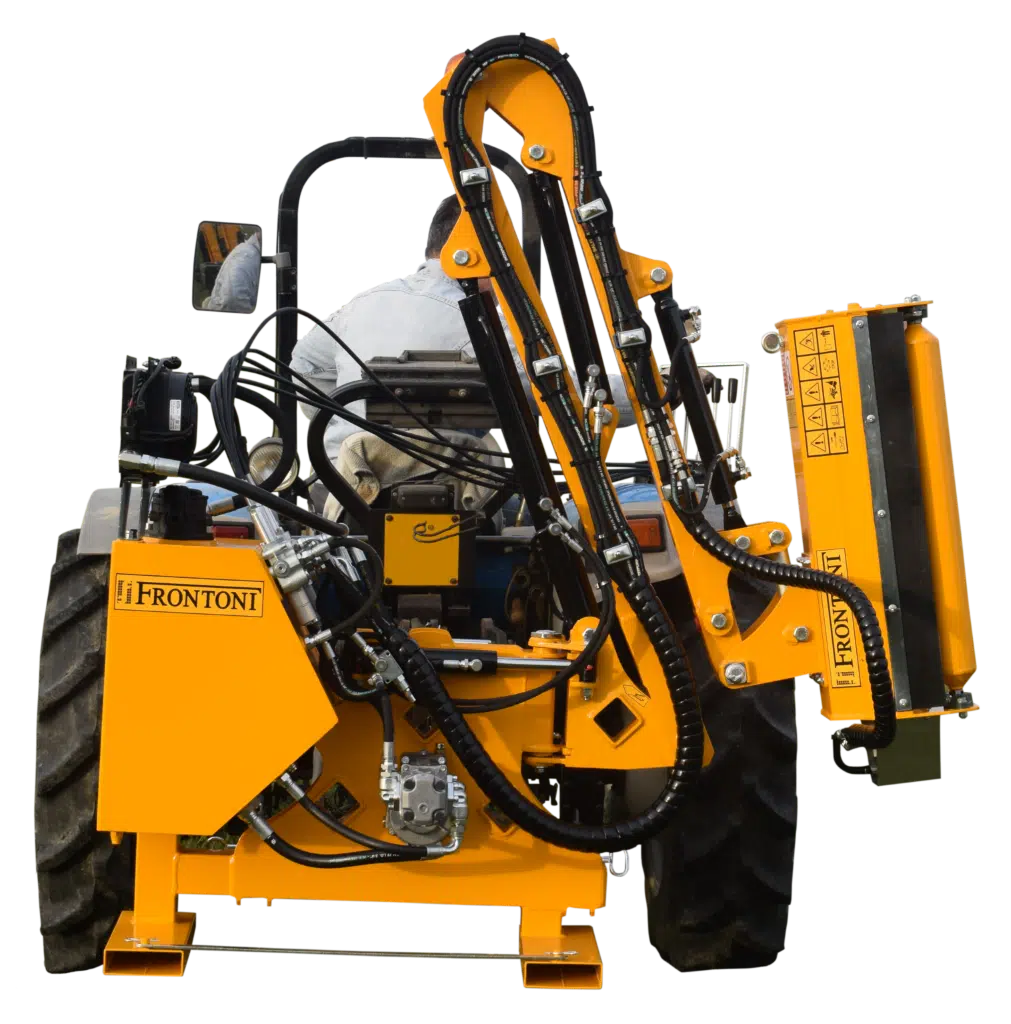

These Hydraulic flail-hedger mowers for compact tractors (30-50HP) is conceived to solve the problem of cutting up in drains, street edges, embankments and parks.
Technical Information
| CAT 290 | CAT 340 | CAT 385 |
|---|---|---|
| 330Kg. | 380Kg. | 410Kg. |
| 540 Rpm | 540 Rpm | 540 Rpm |
| 3000 Rpm | 3000 Rpm | 3000 Rpm |
| 23Hp | 23Hp | 23Hp |
| 55Lt. | 55Lt. | 55Lt. |
| kg 1000 | kg 1200 | kg 1400 |
| HP 30/50 | HP 30/50 | HP 30/50 |
| cm 120 | cm 120 | cm 120 |
Further Information
Oil flow rate of the 2 pumps (l/MIN): 47l/min + 15l/min
Ø Rotor tube and thickness: Ø 60,3 X 8 mm
Ø Rear roller and thickness: Ø 89 X 4 mm
Cemented bushes in the joints: Standard
Full rotation hydraulic safety and shock-prevention device: Standard
Reversible rotor: Standard
Floating head: Standard
Oil cooler whit thermostat: Optional
Nitrogen accumulators: Optional
Special top link connection: Optional
